Product Usage and Introduction

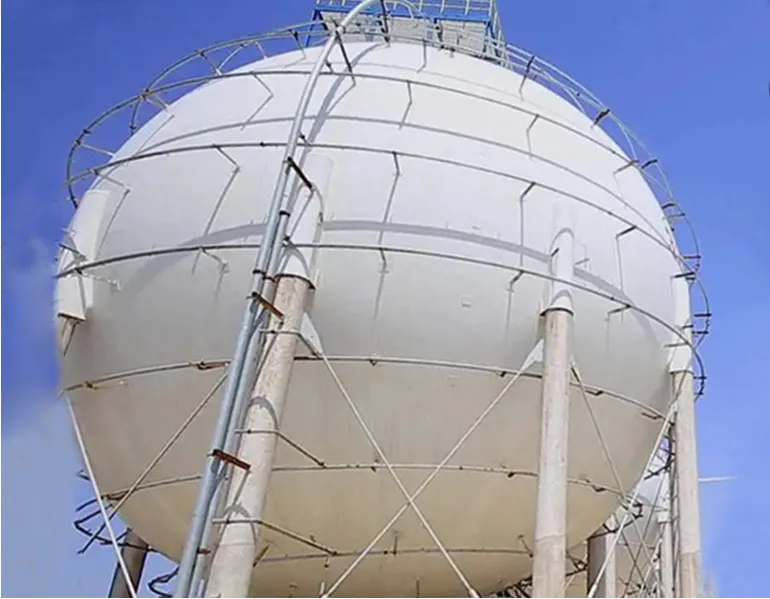

This series of products are steels for boilers and pressure vessels, used in power generation and steam boilers, heat exchangers, fixed pressure vessels, mobile pressure vessels, marine pressure vessels, petrochemical equipment, spherical tanks or storage tank bodies, etc. They also need to withstand certain internal pressures and high or low temperature environments, so the selection of materials needs to be determined according to actual conditions. Below, we will introduce to you the thickness range, delivery status and execution standards of various grades we can provide. We hope this can be helpful to you. If you have any questions about the products or need to inquire about prices, you can contact us by email. Since some grades can be classified into multiple categories according to their uses, it may cause inconvenience for you to find them, and we sincerely apologize for that. If you have any good suggestions, you can also tell us. Thank you very much!

Spot inventory inquiry Spot inventory

If conditions permit, we can also provide customized steel mill services. The thickness, width, and length can all be tailored to your requirements, just like a tailor making clothes for you to fulfill personalized orders.

Steel mill custom business email: customize@cehesteel.com

9Ni Steel It is mainly used in the manufacturing field of liquefied natural gas (LNG) storage tanks and transport ships. Its nickel content is about 9% and it belongs to low-carbon quenched and tempered steel.
It has characteristics such as high purity and excellent low-temperature toughness, and also combines high strength with a low thermal expansion coefficient.

Range of available products

Implementation standard Grade Thickness range Delivery status
[ASME]SA387/SA387M   [ASTM] A387/A387M SA387 Gr.11Cl.2、A387 Gr.11Cl.2 6-140 N+T N+T+SR N+ACC+T+SR
SA387 Gr.11Cl.2(H）
A387 Gr.11Cl.2(H)
SA387 Gr.12Cl.2、A387 Gr.12Cl.2
SA387 Gr.12Cl.2(H）
A387 Gr.12Cl.2(H)
SA387 Gr.22Cl.2、A387 Gr.22Cl.2
SA387 Gr.22Cl.2(H）
A387 Gr.22Cl.2(H)
SA387Gr5Cl.2
[ASME] SA204/SA204M [ASTM] A204/A204M SA204Gr.B 6-100 N/N+SR
SA204Gr.C
[ASME] SA203/SA203M [ASTM] A203/A203M SA203Gr.D 6-80 N+T
SA203Gr.E
[ASME] SA285/SA285M [ASTM] A285/A285M SA285Gr.A/A285Gr.A 6-50 AR/CR/N/N+SR
SA285Gr.B/A285Gr.B
SA285Gr.C/A285Gr.C
[ASME] SA299/SA299M
[ASTM] A299/A299M		 SA299/A299 8-130 N/N+SR
[ASME] SA516/SA516M
[ASTM] A516/A516M		 SA516Gr.55/A516Gr.55 6-130 AR/CR/N/N+T/N+SR/N+T+SR
SA516Gr.60/A516Gr.60
SA516Gr.65/A516Gr.65
SA516Gr.70/A516Gr.70
[ASME] SA533/SA533M
[ASTM] A533/A533M		 SA533 Type A/A533 Type A 10-130 QT/QT+SR
SA533 Type B/A533 Type B
SA533 Type C/A533 Type C
SA533 Type D/A533 Type D
[ASME] SA553/SA553M
[ASTM]A553/A553M		 SA553 Type I/A553 Type I 5-40 QT
[ASME] SA737/SA737M
  [ASTM] A737/SA737M		 SA737 Gr.B/A737 Gr.B 8-50 N/N+SR/N+ACC+T
SA737 Gr.C/A737 Gr.C
[ASME] SA738/SA738M [ASTM] A738/SA738M SA738 Gr.A/A738 Gr.A 8-150 N/N+SR/QT/QT+SR
SA738 Gr.B/A738 Gr.B 10-130 QT/QT+SR
SA738 Gr.C/A738 Gr.C 10-150 QT/QT+SR
[ASME] SA612/SA612M
[ASTM] A612/A612M		 SA612/A612 6-25 AR/CR/N/N+SR
[ASME] SA662/
  SA662M          [ASTM] A662/A662M		 SA662Gr.A/A662 Gr.A 6-50 CR/N/N+SR
SA662Gr.B/A662 Gr.B
SA662Gr.C/A662 Gr.C
[ASME] SA455/SA455M
[ASTM] A455/A455M		 SA455/A455 8-130 AR/CR/N/N+SR
[ASME] SA841/SA841M [ASTM] A841/A841M SA841 Gr.A/A841 Gr.A 8-65 TM/TM+T
SA841 Gr.B/A841 Gr.B
SA841 Gr.C/A841 Gr.C
EN10028-2 P235GH 6-130 AR/CR/NR/N/N+SR
P265GH 6-130
P295GH 6-130
P355GH(19Mn6) 6-130
16Mo3 6-130
20MnMoNi4-5 10-130
EN10028-3 P275NH/NL1/NL2 6-130 N/NR
P355N/NH/NL1/NL2 6-130 N/NR
P460NH/NL1/NL2 8-130 N/N+T
EN10028-4 12Ni14 5-80 N/N+T
X12Ni5 5-50 QT
X7Ni9 5-40 QT
X8Ni9 5-50 QT/N+N+T
EN10028-5 P355M/ML1/ML2 8-80 TM/TM+T
P420M/ML1/ML2 8-60 TM/TM+T
P460M/ML1/ML2 8-60 TM/TM+T
EN10028-6 P355Q/QH/QL1/QL2 10-130 QT/QT+SR
P460Q/QH/QL1/QL2
P500Q/QH/QL1/QL2
P690Q/QH/QL1/QL2
Remarks on delivery status:
A-Annealing,AR-Rolling,ACC-Accelerated cooling,CR-Controlled rolling,N-Normalizing,NR-Normalizing rolling,QT-Quenching and tempering,SR-Stress relief,T-Tempering,TM-Thermomechanical control process

Chemical compositions of pressure vessel plates of various grades &Mechanical properties

Grade Chemical composition Mechanical properties Remarks
C Mn Si S P … ReH Rm KV₂
SA285Gr.C 0.13~0.16 0.60~0.75 0.10~0.40 ≤0.010 ≤0.020 ≥210 380~515 H2470794requirement:-42℃
impact requirement
SA515Gr.70 0.17~0.20 1.05~1.20 0.15~0.30 ≤0.010 ≤0.025 ≥260 485~620 Coarse-grained steel
SA516Gr.60 0.11~0.14 0.85~0.95 0.15~0.30 ≤0.010 ≤0.025 ≥220 415~550
SA516Gr.70 0.15~0.19 1.25~1.50 0.25~0.40 ≤0.010 ≤0.025 ≥260 485~620 To be added by the customer:CEV≤0.43%;P≤0.010%
SA387Gr.12Cl.2 0.14~0.17 0.40~0.55 0.15~0.25 ≤0.010 ≤0.020 ≥275 450~585 Cr:0.90~1.10%;Mo:0.45~0.55%
SA387Gr.11Cl.2 0.14~0.17 0.40~0.55 0.50~0.60 ≤0.010 ≤0.020 ≥310 515~690 Cr:1.20~1.35%;Mo:0.45~0.55%
SA387Gr.22Cl.2 0.12~0.14 0.40~0.55 0.05~0.15 ≤0.010 ≤0.020 ≥310 515~690 Cr:2.10~2.20%;Mo:0.90~1.00%
SA387Gr.5 Cl.2 0.10~0.13 0.35~0.50 0.05~0.15 ≤0.010 ≤0.020 ≥310 515~690 20℃(≥47J) Cr:4.00~4.10%;Mo:0.45~0.55%
SA537CL.1 0.15~0.18 1.40~1.50 0.15~0.40 ≤0.010 ≤0.020 ≥345 485~620 Nb:0.01~0.02%;Nb:0.01~0.02%;
supplied for PWHTand low-temperature impact
SA537C1.2 0.14~0.17 1.40~1.50 0.15~0.40 ≤0.010 ≤0.020 ≥415 550~690 Nb:0.01~0.02%;V:0.02~0.03%
SA553Ⅰ ≥450 -195℃
SA612M 0.16~0.19 1.40~1.50 0.15~0.40 ≤0.010 ≤0.020 Nb,V,Ti ≥355 570~725 -40℃(≥31J) Ni:0.15~0.25%;Cu0.20~0.30%
P265GH 0.14~0.17 0.85~0.95 0.15~0.30 ≤0.010 ≤0.020 ≥265 410~530 -20℃(≥27))
P355GH 0.17~0.20 1.40~1.55 0.15~0.40 ≤0.010 ≤0.020 ≥355 510~650 -20℃(227) Nb:0.012~0.02%;CEV≤0.47%
16Mo3 0.13~0.16 0.80~0.90 0.10~0.30 ≤0.010 ≤0.015 Alt,Ti ≥275 440~590 20℃(≥31J) Mo:0.25~0.30%
P355NL1 0.13~0.16 1.45~1.55 0.15~0.40 ≤0.008 ≤0.020 ≥355 490~630 -40℃(227J) Nb:0.018~0.028%;CEV≤0.43%
P400NGj4 0.16~0.19 1.50~1.60 0.15~0.40 ≤0.010 ≤0.020 Nb,V,Ti ≥400 550~675 -40℃(227)) Ni:0.25~0.35%;CEV≤0.48%

In our warehouse in Wuxi City, Jiangsu Province, China, we have a long-term stock of over 10,000 tons of steel plates for boilers and pressure vessels, including some pressure vessel steel plates that meet the ASME standards. If you have any needs, you can click here to check if there are boiler and pressure vessel steel plates that meet your requirements. More than 70% of the boiler and pressure vessel steel plates have EN10024 3.1 certification.
